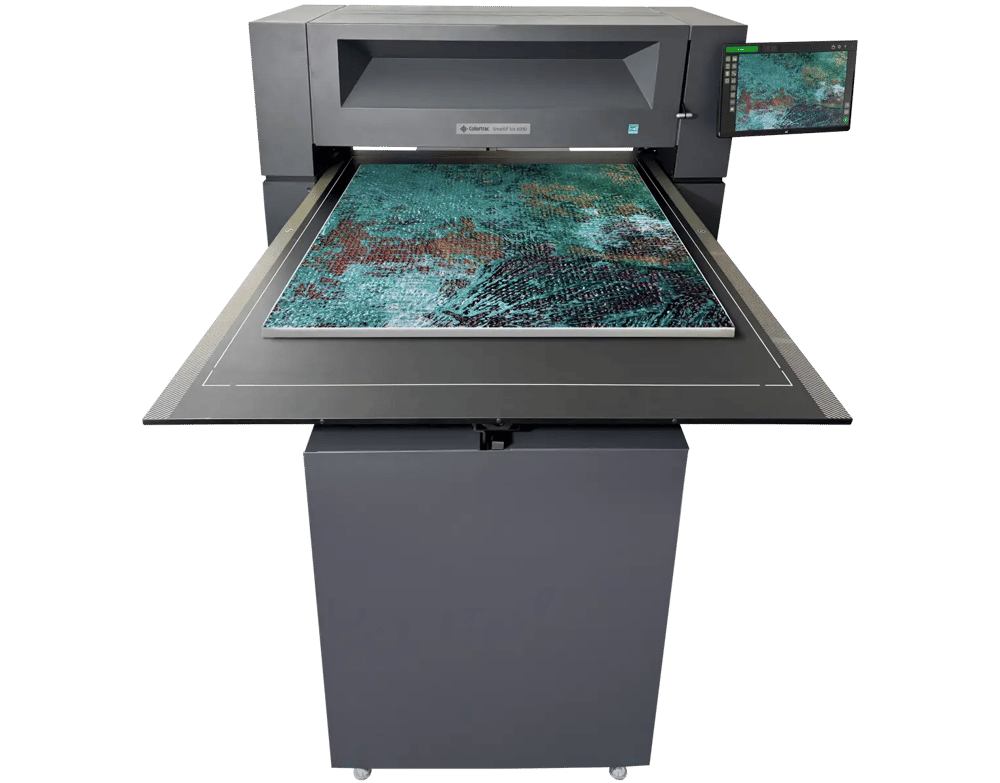

SmartLF ivo 6000
The professional system for high-end art reproduction
A professional system for fine art reproduction that allows studios and artists to preserve and translate original works into high-quality editions, prints, and digital versions.
The new standard in fine art reproduction
SmartLF ivo 6000 is contact-free scanning of fine art with no setup, no correction, and repeatable results.
The challenge of high-end art reproduction
Original artworks contain detail, texture, and depth that is difficult to preserve using conventional capture methods. For studios and institutions, this leads to inconsistent reproduction quality, loss of fine detail in prints, time-consuming correction workflows, and limited scalability across projects
A new standard for artwork capture
SmartLF ivo 6000 is designed to capture original artworks with precision, consistency, and care - enabling high-quality reproduction across multiple formats and outputs.
It transforms capture from a technical step into a reliable production foundation.
From original artwork
To reproducible high-fidelity editions
Scanning artwork up to
42 x 60 inches
Covering 85 % of all artwork
The simple reproduction workflow
Fine art originals - no prep needed
Contact-free scanning
Printing reproductions
Fine art reproductions are ready
What quality-driven studios are trying to improve
In fine art reproduction, the pressure is personal. You need a file that stays true to the original, so you are not second guessing color, tone, or texture at approval time.
The goal is confidence from the first scan, less correction before sign off, and results that repeat reliably from scan to scan and print to print.
And then it's about helping artists understand how they can profit from a great reproduction and selling each painting more than once.
Higher confidence, less correction, repeatable results
You are not trying to “scan” faster. You are trying to deliver print faithful files that get approved with confidence. The goal is fewer surprises, fewer edits, and a result that looks right on paper, not only on screen.
Get rid of the hidden cost of time
Many reprographic studios can reach a good result, but only after heavy setup and correction. Results can vary by operator and by day.
Color needs manual rescue. Texture gets flattened. And each revision round adds time before approval.
If the file needs heavy correction to be trusted, the problem started at capture.
Move from this
Time consuming camera setup
Hard to repeat lighting setup
Stitching several scans
Editing is repair and retouching
Revision rounds with customer
Hours
To SmartLF ivo 6000
A repeatable capture process
Even illumination with 4 lighting options
One scan in one go
Editing becomes refinement, if at all
A chance to let the customer review while scanning
Minutes
SmartLF ivo 6000 is the fast track to fine art digitization
You need a fully controlled way to digitize fine art
Confidence starts at scan
SmartLF ivo 6000 is built around controlled, repeatable capture. The aim is a file that holds together from the first scan, so approval work becomes lighter and more predictable.
"A straight-forward scan without any kind of adjustment
has given us a quality in reproduction that
we otherwise just can’t get near."
OWNER, FINE ART REPRO STUDIO
Hahnemühle certified studio
A more controlled way to digitize for fine art reproduction
Controlled light, accurate color
Natural daylight spectrum LEDs, uniform illumination, gives a CRI above 98 which supports accurate color. No UV or IR.
Surface detail you can emphasize
Four lamp positions plus a post scan 3D effect let you translate surface sensation into the image.
Repeatability, less operator dependence
Key parameters are on screen, not buried in tabs or drop downs. Save adjustments as presets.

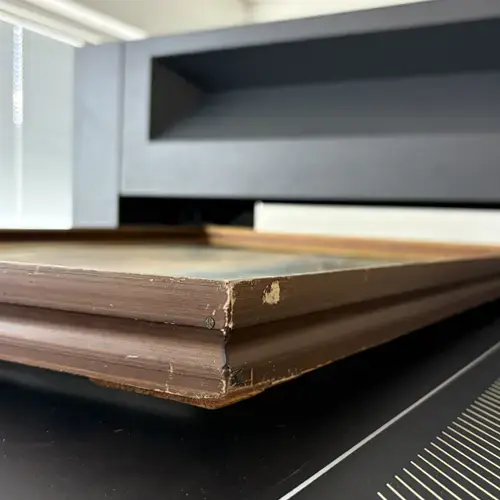

Built for real originals, including framed work
Contact-free capture, 10 inch clearance, and focus plane up to 5.1 inch above the table support thicker originals.
Scanner vs. camera
You could think of a scanner like a camera, but it's more like a fully calibrated studio photography setup with everything fixed in one place - the scanner.
Multiple precision CCD cameras, fixed optics, controlled lighting, and automatic stitching work together to capture flat originals consistently from edge to edge. Compared with high-end DSLR photography, the advantage is no longer creative flexibility - it is repeatability, geometry, even lighting, and automated capture of large flat originals.
So it’s not trying to be a DSLR. It’s doing something a DSLR setup struggles to do consistently: Capture large flat originals in one repeatable workflow.
In scanner-terms, what you get with SmartLF ivo 6000 is:
- Contact-free scanning to keep the artwork face from touching the scanner
- The scan module shields off ambient light and gives uniform lighting with no distance fading to the full scan
- TRI-R® LEDs recreate the natural daylight spectrum, designed for accurate colors
- 6 CCD cameras capture fine details up to 1200 dpi optical resolution
Color management for print-faithful reproduction
Print approval depends on three things: Tonal depth, texture fidelity, and accurate color translation. SmartLF ivo 6000 supports these with high optical resolution, controlled light, wide color space options, and ICC color management.
-
Color spaces include ProPhoto RGB, Adobe RGB, sRGB and Device RGB
-
ICC color management is open to include own ICC color profiles - or choose one of the included ICC profiles based on advanced IT8-2 (ISO 12641-2), X-Rite ColorChecker SG, and more.
-
Post scan 3D surface effect option to emphasize surface uniqueness
Protect originals, reduce risk
Protection and preservation is the only option. SmartLF ivo 6000 is contact free with 4.9 in (124 mm) safe space above the original, and the light emits no UV or IR.
This means 100% safe handling even for delicate and valuable originals.
When capture is controlled, your workflow calms down
Stop spending time on fixing files and start producing consistent results in bulk. Presets - built-in or your own - help you repeat results across projects and operators.
Trust
Repeatability
Reputation
Fewer correction rounds before approval
Faster decision making, because the scan is easier to trust
More stable output across a small team
Better use of studio time
See why SmartLF ivo 6000 fits your workflow
In a live demonstration, you can explore how SmartLF ivo 6000 handles fine art reproduction challenges such as repeatability, color confidence, delicate originals, framed artwork, and otherwise correction-heavy workflows.
The goal is simple: Help you assess why it fits your standards and process. No obligation to buy.
- See how the workflow works in practice
- Ask about your originals, approval process, and setup
- Explore the settings to adjust the output
Use the form to request a live demonstration.
Note that SmartLF ivo 6000 is only available in selected regions.
Book a time
Share your use case
Join the live session
Ask the questions
See your own artwork scanned with controlled light, accurate color, and surface detail emphasis.
See your own artwork scanned with controlled light, accurate color, and surface detail emphasis.
SmartLF ivo 6000 product specs
Controlled lighting
Light sources:
2 lamps with TRI-R LEDs with natural daylight spectrum: 2700K, 5000K, 6500K, mounted in elliptical reflectors
Light exposure:
No unnecessary light exposure. Scanning light is narrowly projected to the scan line only.
Lamp specifications:
No UV/IR radiation. No warm up time. Lamp lifetime = scanner lifetime.
Lamp angles:
4 options for different angles of lighting
Light exposure:
No unnecessary light exposure. Scanning light is narrowly an evenly projected to the scan line only.
Lamp specifications:
No UV/IR radiation. No warm up time. Lamp lifetime = scanner lifetime.
Color management
Color spaces:
Adobe RGB, Pro Photo RGB, Device RGB, sRGB
Color profile:
Included ICC color profiles powered by X-Rite, standard IT8 or specialized IT8-2 or add your own ICC profile.
Option to add your own ICC profiles.
Color rendering index (CRI):
CRI >98
Quality option:
Choose between 1-128 exposures per scan line improving color in each pixel (recommended up to 4 exposures)
FADGI:
FADGI **** 4-star rating (The best imaging practical today)
ISO:
ISO 19264-1:2021 compliant (Imaging quality of reflective originals)
Data capture:
Always capturing in 48-bit color (16-bit grayscale), and converting if saved in 24/8-bit for best results.
Data output:
Choose between 24-bit color (8-bit grayscale) or 48-bit color (16-bit grayscale) - only supported by tiff and png.
Capture
Optical resolution:
1200 dpi (maximum 9600 dpi, interpolated)
Total number of pixels:
256,320 pixels
Cameras:
6 premium camera lenses and quad-linear Toshiba color CCDs (RGB and grey)
Lamp angles:
4 options for different angles of lighting

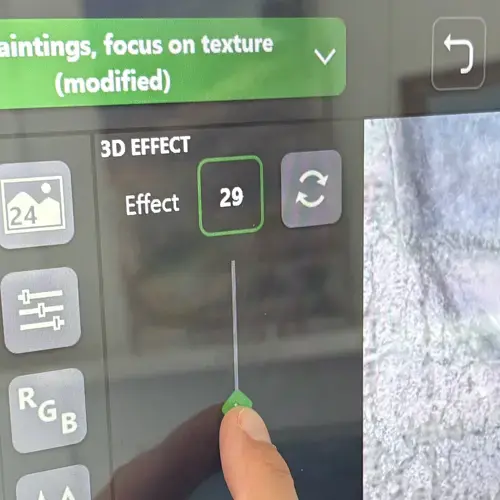

3D surface effect:
Yes. Post-scanning option in the software to slide for desired 3D effect.
Choose the desired effect from 0-100.
Scanning speed:
300 dpi: 5.5 ips
600 dpi: 1.38 ips
1200 dpi: 0.28 ips
Scanning speed with 3D surface effect enabled:
300 dpi: 2.75 ips
600 dpi: 0.69 ips
1200 dpi: 0.11 ips
Sizes
Media loading:
Contact-free face up scanning
Maximum focus plane above table:
5.1 in (130 mm)
Maximum clearance height:
10 in (254 mm)
Maximum focus depth at 300 dpi:
+/- 10 mm
Height adjustment and focus detection:
Auto and manual focus adjustment by 5 lasers in the scan module (patent pending)
Scan size (W x L):
Maximum: 42 x 60 in (1067 x 1524 mm)
Minimum: 1 x 1 in (24.5 x 24.5 mm)
Media size (W x L):
Maximum: 43.8 x 64 in (1113 x 1625 mm)
Minimum: Media smaller than the minimum scan size can be cropped in the software
Ideal for:
Fine art and reprographics
Maximum weight on scanner table:
Up to 44 lbs (20 kg), evenly distributed
Red emergency stop button:
Yes
Repeatability
Preset options to repeat with ease:
Paintings – focus on surface texture
Paintings – eliminating surface textures
Watercolor on paper
Option to create your own preset
Accuracy:
0.1% +/- 1 pixel
Table conveyance system:
Precision timing belt transmission with triple-point direction control system.
"The most steady a lightweight moving table can be."
Movement controls via software:
Scan module: Up/down.
Table: Forward/reverse.
Default table position: Left/right
Height adjustment and focus detection:
Auto and manual focus adjustment by 5 lasers in the scan module (patent pending)
Speed
Scanning speed:
300 dpi, 24-bit color: 5.5 ips
600 dpi, 24-bit color: 1.38 ips
1200 dpi, 24-bit color: 0.28 ips
Scanning speed with '3D surface effect' enabled:
300 dpi, 24-bit color: 2.75 ips
600 dpi, 24-bit color: 0.69 ips
1200 dpi, 24-bit color: 0.11 ips
Scanning speed with 'Super-flat surface' enabled:
300 dpi, 24-bit color: 6 ips
600 dpi, 24-bit color: 1.5 ips
1200 dpi, 24-bit color: 0.12 ips
Data output choices:
Optimize for quality: 48-bit color, 16-bit grayscale
Optimize for speed: 24-bit color, 8-bit grayscale
PC and connectivity
Recommended PC requirements:
2.4 GHz processor, 8 cores (16 logical processors) or better 64-bit processors, 32 GB RAM and SSD SATA drive
PC not included. Choose a PC that suits your specific needs.
Operating systems:
Windows 11 64-bit
Connectivity:
Minimum USB 3.0 SuperSpeed or Gigabit Ethernet
Included monitor:
22 in touchscreen (VESA mount 75 x 75 mm and 100 x 100 mm) with adjustable position for optimal ergonomics
Option to replace it with your own calibrated monitor on the mount.
Included software:
SmartWorks ivo (English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Korean, Chinese simplified, Japanese)
File formats:
Big TIFF, TIF, JPG, PDF, PDF/A, DWF, BMP, JPEG2000 Extended (JPX), TIF-G3, TIF-G4, PNG
Printer support:
HP, Canon, Epson and Oce printers. See colortrac.com/smartworks-ivo-supported-printers for full list
Room requirements
Temperature:
Operating: 15 to 30 C (59 to 86 F)
Storage: -20 to 55 C (-4 to 131 F)
Relative humidity:
35 to 60%, non-condensing
Installation room:
Firm, flat surface at least 1378 x 630 in (3500 x 1600 mm)
Ambient light is OK:
Keep on working - no need to turn off the lights in the room.
Minimum room entrance size:
Minimum width: 32 in (81 cm), with the packaging foam box removed
Minimum height: 57 in (145 cm), with scan module set in the lowest position
Shipping crate (W x H x D):
79 x 73 x 53 in (2010 x 1860 x 1350 mm)
Weight 750 lbs (340 kg)
Unboxing and installation:
Wheels on the scanner and an included ramp assists unboxing and installation
Room size in reality:
No need to be able to walk around the scanner other than for installation, but please keep enough space to not bump into it, it will require a re-calibration of the scanner.
Noise level from scanner:
Ready (standby): 0 dBA
Sleep: 0 dBA
Scan: 44.8 dBA (min. table speed), 45.4 dBA (medium table speed), 47 dBA (max. table speed)
Power consumption from scanner:
Ready (standby): 36W
Sleep: 1.3W. Scan: 76W (Energy Star 3.0 compliant)
Power supply needed for scanner:
100 V / 220 V / 240 V, 60/50 Hz
Scanner size (W x H x D):
135.8 x 61.3 x 62 in (3450 x 1558 x 1575 mm) in highest position
Scanner weight:
Approx. 412 lbs (187 kg)
Scanner table and cabinet door sizes:
Table height: 35.4 in (900 mm)
Cabinet door opening (W x H): 19 x 21.8 in (484 x 555 mm)
Certifications and compliance
FADGI:
FADGI **** 4-star rating (The best imaging practical today)
ISO:
ISO 19264-1:2021 compliant (Imaging quality of reflective originals)
Certifications/compliance:
UL/Cb, FCC, CCC (China), UKCA, CE, VCCI (Japan), Laser (FDA/IEC), RoHS, Energy Star 3.0
Color rendering index (CRI):
CRI >98
Country of origin:
Designed and engineered in Denmark
Assembled in China
FAQ's
Is the scanner safe for valuable originals?
It is contact free, and the light emits no UV or IR radiation.
Can it help show texture and brush strokes?
Yes. It offers four lamp positions and a post scan 3D surface effect option to emphasize surface uniqueness and details.
What makes color more reliable?
Controlled lighting, high-end CCD camera lenses, color management with ICC profiles, color spaces which gives the scanner a CRI (Color Rendering Index) value above 98 which is considered true-to-life color.
What is included?
You get everything you need for scanning and calibrating in the package.
SmartWorks ivo software is also included with the scanner as well as the screen.
However you to supply your own computer with Windows, choose a faster computer for handling larger scan files faster.
Note that it's possible to switch to another screen of your own supply - if for example you prefer a color calibrated screen.
Who can operate the scanner?
Anyone can operate the scanner.
The workflow is designed to be simple; choose a preset, position the height, and scan. Settings are on screen, not hidden.
What sizes can I scan?
Scans up to 42 by 60 inch. It supports thick and framed works with up to 10 inch media thickness and focus plane up to 5.1 inch above the table.
Which printers do you recommend?
The scanner can be used to create great files for any printer.
Most users typically pair it with an art focused large format printer like:
|
Epson |
SC-P7500, SC-P9500, SC-P9570, SC-P20570 |
|
Canon |
PRO-2100, PRO-2600, PRO-4100, PRO-4600, PRO-6100 |
|
HP |
DesignJet Z6, Z9+, Z9+ Pro |
|
Roland DG |
TrueVIS, VersaOBJECT (selected workflows) |
|
Mimaki |
JV Series, UCJV Series |
|
Mutoh |
ValueJet series |
Get the brochure
Get in touch
Contact us with questions about SmartLF ivo 6000 contact-free large format art scanner.
